Inspection Equipment

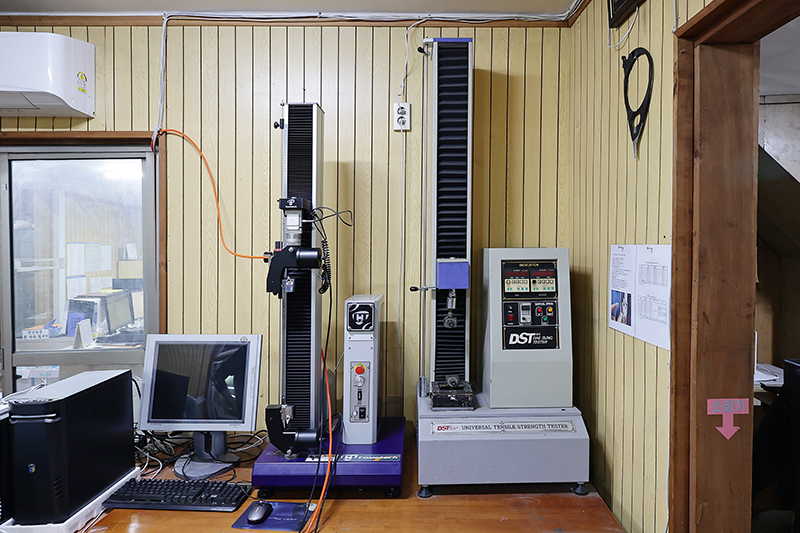

Tensile Strength Tester
(Left: DS-UMC, Right: QC-548M1F)
Yarn Twist Tester
Reel Tester
| Category | Tensile Strength Tester |
|---|---|
| Model | DS-UMC |
| Type | Hydraulic |
| Measurement Accuracy | ±0.3% |
| Speed Range | 0.5~100mm/min |
| Test Width | 400mm |
| Category | Tensile Strength Tester |
|---|---|
| Model | QC-548M1F |
| Load Cell | 200kgf |
| Resolution | 1/50,000 |
| Travel Distance | 800mm |
| Speed Range | 02~2000mm/min |
| Category | Yarn Twist Tester |
|---|---|
| Model | Y331A |
| Test Length | 0~500mm |
| Test Range (Twist) | 1~9999.9 |
| Rotation Speed | 500~2000 Rotation/Minute |
| Category | Reel Tester |
|---|---|
| Model | YG086 |
| Reel Circumference | 1000mm |
| Reel Rotation Speed | 25~300rpm |
| Winding Count | 2~9999 |
| Reciprocating Travel Distance | 35mm±1mm |
| Pre-Winding Tension | 0~100cN |
